Q-PB1 Series

[ 6 to 84 WAY ] Power PANELBOARD PB1

Introducing narrowest single main in industry at 24“wide

• Up to 1250A
• Indoor: IP31/ NEMA1
• Outdoor: IP55/ NEMA3R with side/rear access
• Seismic rated
• Available as main or branchsections
• Auxiliarycompartment for ease of lug and bus splice access
• Includes same great features as 30’’wide
• Power Lamp ( Led Indicator )
• Power Meter
• SPDs, DAS (maintenance mode)
• IEC 61439  , UL67 Declaration of conformity
• Surface / Flush

•   Semi-modular structure

•   Top-Bottom Combining Function

•   Body: 1,5 to 2,00mm Mild Steel

•   Door: 1,5 to ,2,00mm Mild Steel

•   Back Plate: 2,00 mm galvanized steel

•   Cover Plate: 1,20 mm Mild steel

•   Iron Phosphate Coating and  Epoxy Polyester

•   IP Protection: Single Door Max. IP 66  NEMA 1to12

•   Mechanical Endurance: IK 10

•   Supply Includes: 1pcs. body, 1pcs. door, 1set bottom-top cover

•   Certificates: TSE, IEC 62208,CE, Gost , UL 50 , EAC

DIMENSIONS
LENGTH		WIDTH			DEPTH
		24’’	32’’		9’’	12’’
		60cm	80cm		22cm	30cm
14’’ - 35cm		√	Option		√	Option
19’’ - 50cm		√	Option		√	Option
26’’ - 65cm		√	Option		√	Option
32’’ - 80cm		√	Option		√	Option
43’’ - 110cm		√	Option		√	Option
50’’ - 125cm		√	Option		√	Option
59’’ - 150cm		√	Option		√	Option
65’’ - 165cm		√	Option		√	Option
71’’ - 180cm		√	Option		√	Option
79’’ - 200cm		√	Option		√	Option

501

  The  new X  and  Q-PB1 Interior  system gives  you the  flexibility  to design  your own   custom  panelboard.   There   are three sizes for the fixed panelboard, 12up to 84 outgoing ways, and each one can  be   equipped   with  an   incoming breaker from 20 A to1200 A, 1,2,3 or 4  pole.    Each panelboard  has  a fixed dimension of copper depending on

[SP] Single Pole

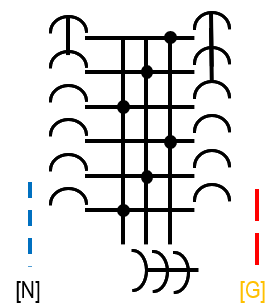

[TP] Three Pole

[TPN4] Three Pole+Neutral4
