PANELBOARD BREAKERS

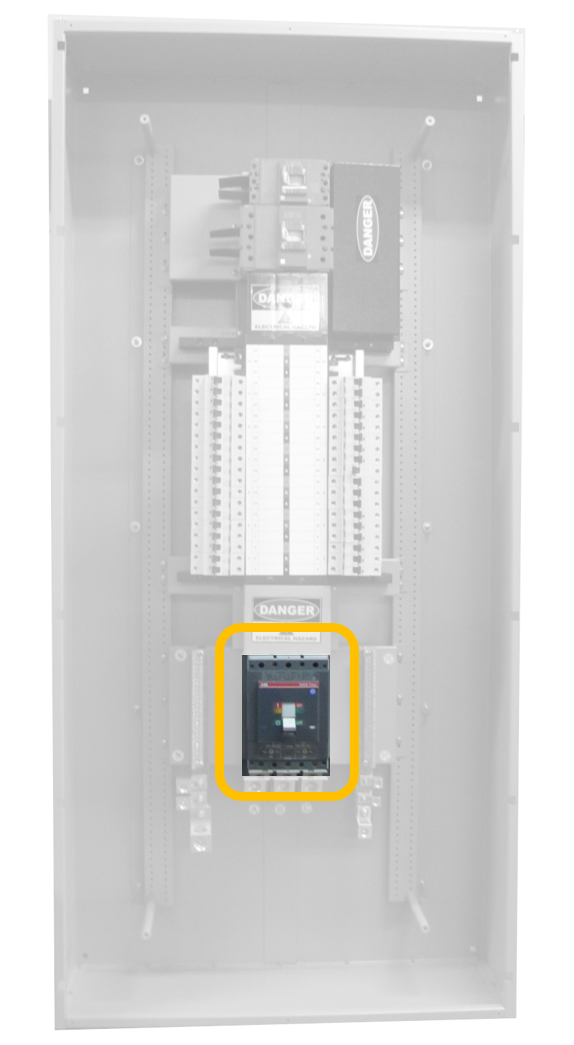

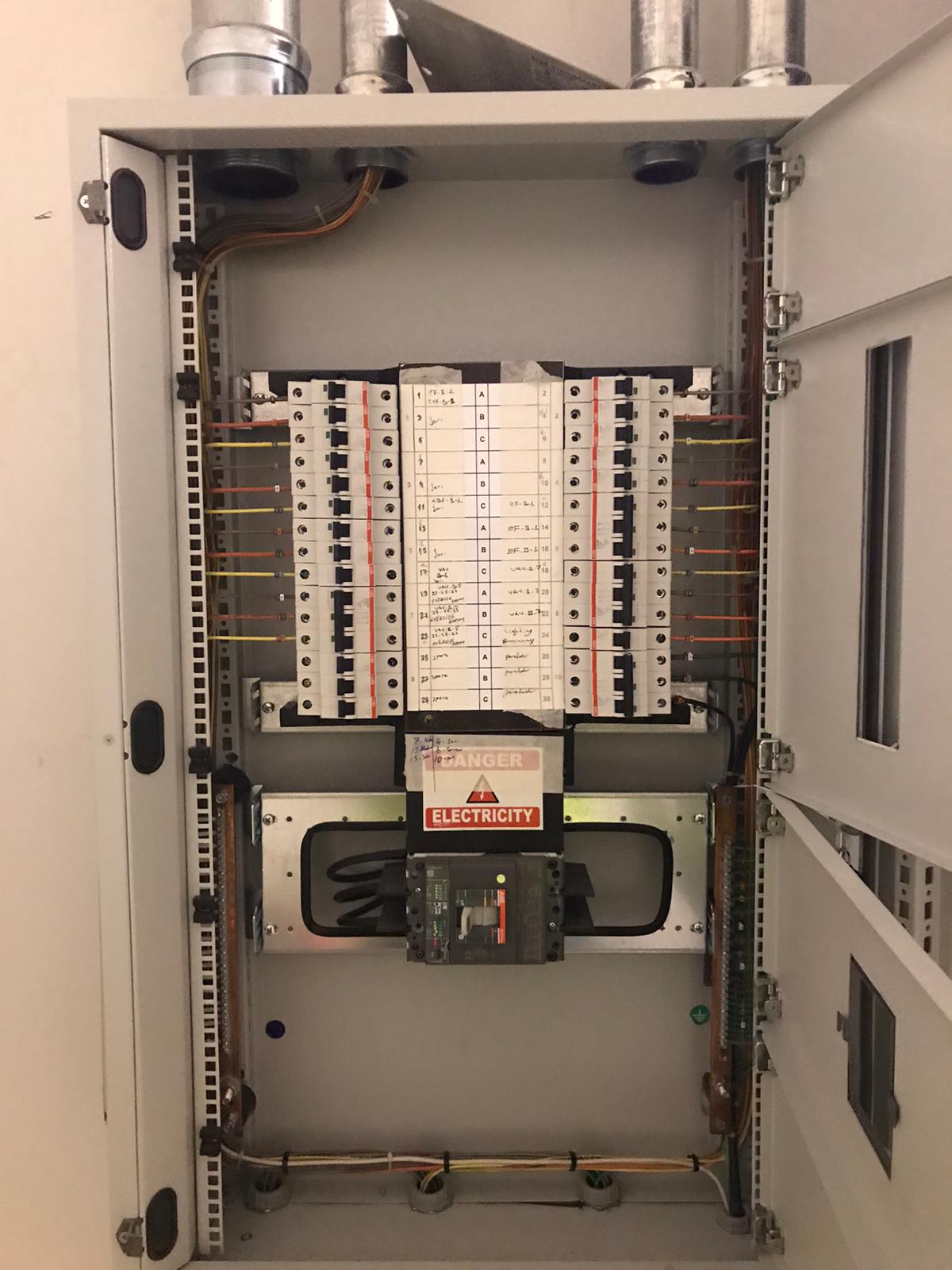

MAIN BREAKER FEATURES
.jpg)
• Up to [ Nema 1 , Nema3 , Nema , 3S Nema 3R , Nema 4 , Nema4X] enclosure can be used. • Enclosures and Interiors are shipped fully assembled. • Up to a maximum of 70kA Circuit Breakers can be installed. • It is suitable for Power Monitoring Scada. ( PMS ) • An additional module is used to install an Energy Analyzer. • Current Transformers In Mains are based on transformers having a 5/A secondary |
•Compliance with Standards UL489 CSA C22.2 No. 5 IEC 60947-2 EC Directive: - “Low voltage” (LVD) no. 2006/95/CE - “Electromagnetic compatibility” |  | •Trip units TMF (Fixed treshold) TMA (fully adjustable) Magnetic only MA (Magneticonly adjustable) LI LS/I LSI LSIG |
| Rated Current | |||||||||||||||
| X-PB1 | 32A | 40A | 50A | 63A | 80A | 100A | 125A | 160A | 225A | 250A | 400A | 630A | 800A | ||
| Q-PB1 | 32A | 40A | 50A | 63A | 80A | 100A | 125A | 160A | 225A | 250A | 400A | 630A | 800A | 1000A | 1250A |

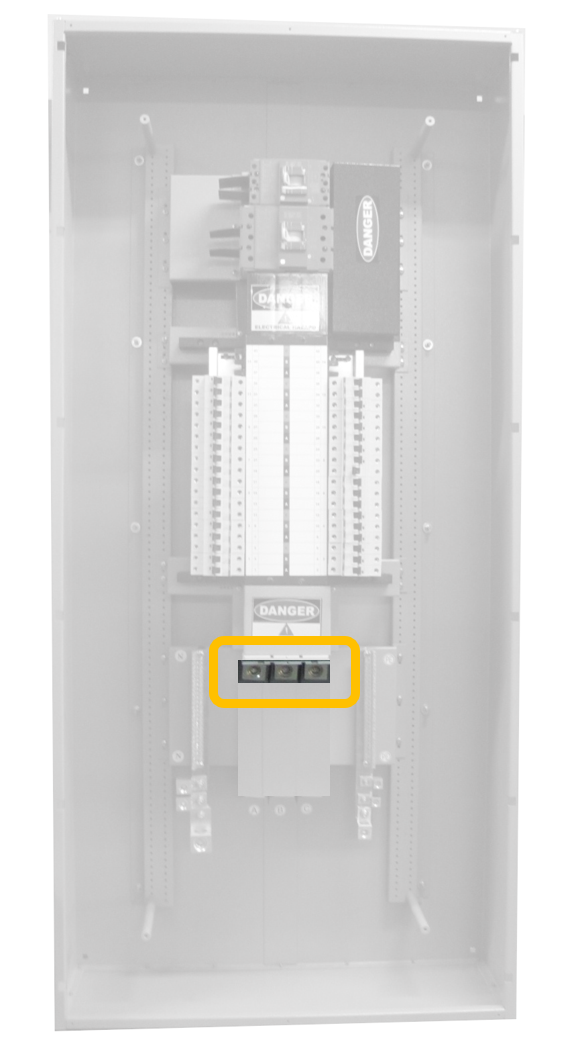

MAIN LUG FEATURES
• Up to [ Nema 1 , Nema3 , Nema , 3S Nema 3R , Nema 4 , Nema4X] enclosure can be used. • Enclosures and Interiors are shipped fully assembled. • An additional module is used to install an Energy Analyzer. • Current Transformers In Mains are based on transformers having a 5/A secondary |
Terminal Type EF terminal with cable lug [ Standard ] EFL terminal with large cable lug ELF terminal with cable lug | | Rated Current 125A 250A 400A 630A 800A 1250AIt is strengthened using copper. |

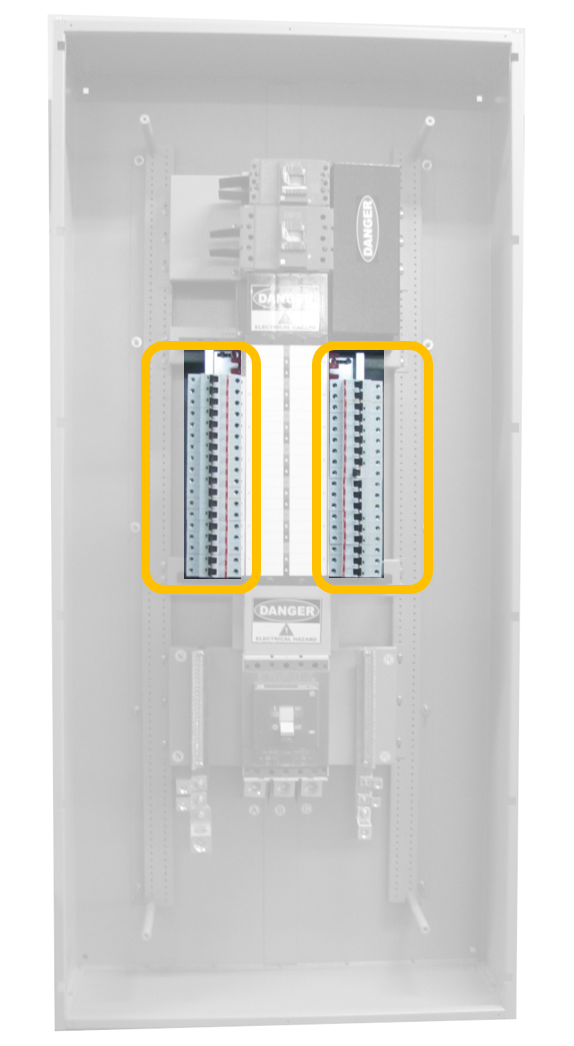

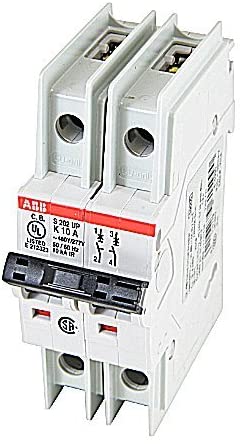

BRANCH BREAKER FEATURES
• Up to [ Nema 1 , Nema3 , Nema , 3S Nema 3R , Nema 4 , Nema4X] enclosure can be used. • Enclosures and Interiors are shipped fully assembled. • Up to a maximum of 70kA Circuit Breakers can be installed. • It is suitable for Power Monitoring Scada. ( PMS ) • An additional module is used to install an Energy Analyzer. • Current Transformers In Mains are based on transformers having a 5/A secondary |
•Compliance with Standards UL489 , UL1077 CSA C22.2 No. 5 IEC 60947-2 , IEC 60898-1 EC Directive: - “Low voltage” (LVD) no. 2006/95/CE - “Electromagnetic compatibility” | | •Trip units F (Fixed ) TMF (Fixed treshold) TMA (fully adjustable) Magnetic only MA (Magneticonly adjustable) LI LS/I LSI LSIG |
| |||||||||||||||||||||||||||||||
| X-PB1 | 1A | 2A | 4A | 6A | 10A | 16A | 25A | 32A | 40A | 50A | 63A | 80A | 100A | 125A | |||||||||||||||||
| Q-PB1 | 16A | 20A | 25A | 30A | 32A | 40A | 50A | 63A | 80A | 90A | 100A | 125A | 160A | 225A | 250A | ||||||||||||||||

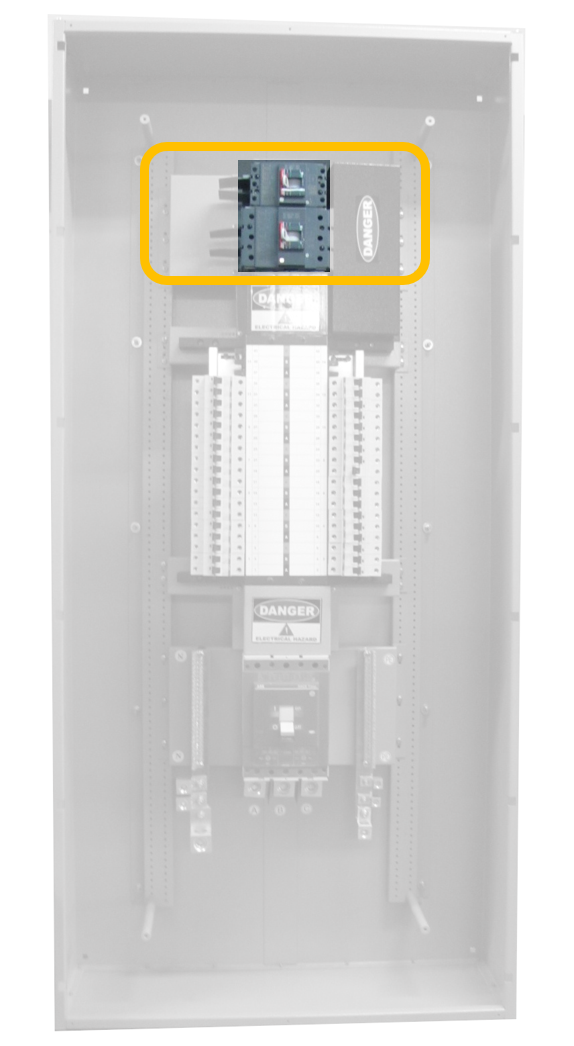

SUB FEED FEATURES
• Up to [ Nema 1 , Nema3 , Nema , 3S Nema 3R , Nema 4 , Nema4X] enclosure can be used. • Enclosures and Interiors are shipped fully assembled. • An additional module is used to install an Energy Analyzer. • Current Transformers In Mains are based on transformers having a 5/A secondary |
•Compliance with Standards UL489 CSA C22.2 No. 5 IEC 60947-2 EC Directive: - “Low voltage” (LVD) no. 2006/95/CE - “Electromagnetic compatibility” | | •Trip units TMF (Fixed treshold) TMA (fully adjustable) Magnetic only MA (Magneticonly adjustable) LI LS/I LSI LSIG |
| Rated Current | |||||||||||||
| X-PB1 | 32A | 40A | 50A | 63A | 80A | 90A | 100A | 125A | 160A | 225A | 250A | 400A | 630A |
| Q-PB1 | 32A | 40A | 50A | 63A | 80A | 90A | 100A | 125A | 160A | 225A | 250A | 400A | 630A |

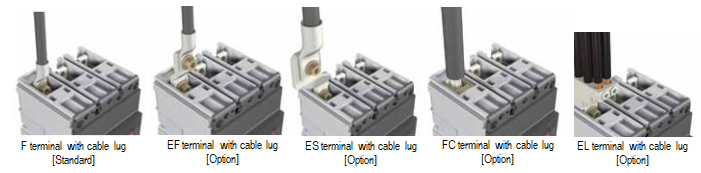

TERMINAL TYPES
OPTIONS
Q-PB1 | X-PB1 |
 |  |
For all breakers For all Breakers MCH Charge Motor SOR Shunt Opening Relase UVR Under Voltage Relase SCR Shunt Closing Relase AUX Auxiliary contact PMS Suitable for Power Monitoring Scada IMU Internal Measuring Unit | Main / Sub Feed Breakers MCH Charge Motor SOR Shunt Opening Relase UVR Under Voltage Relase SCR Shunt Closing Relase AUX Auxiliary contact PMS Suitable for Power Monitoring Scada IMU Internal Measuring Unit Branch breakers AUX Auxiliary contact |
