SWITCHBOARD

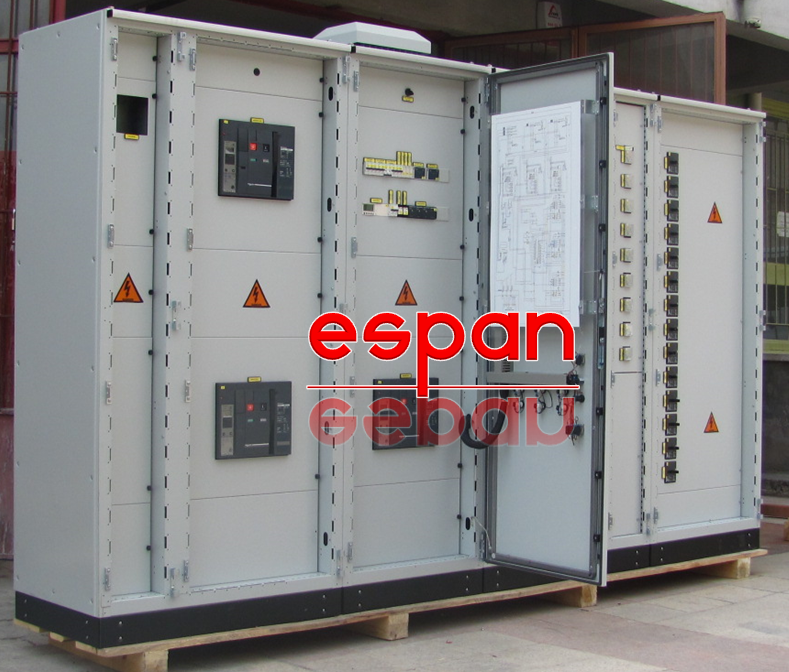

Type Tested Low Voltage Switchboards
Low voltage switchboards are designed to fulfil various applications needs. It’s unique structure and flexible power modules are type-tested and certified by internationally accepted independent laboratories.
Cubicles up to 6800 ADESING ● Fits perfectly in commercial environments ● Colours RAL7035
Rigidandsturdy ●Supporting structure 2 mm thick ● Bentto increase rigidity ● Die-castmetal corner part
Easyand quick to assemble ● Assemblyby a single person ● Pre-assembledcaptive screws ● 120ºscrews for cover plates ● Frameto remove all cover plates at once! ● Click-insupports for functional units and busbarholders. No tools needed | ● Up to 6800A Main busbar. ● 600 Vac ● Front and Rear Intervention. ● Internal and External applications. ● ANSI-61 (RAL 7035) Gray. ● EnergyAnalyzer ● Energy Monitoring Infrastructure ● Surge arrester canbe installed. ● Earth Leakage protection ● Busbar connection is possible. ● Up to 120 / 200kA. ● Copper Busbar(Option Silver Plated) ● Earth Bus ● Neutral Busbar |
M/F SERIE
|
|

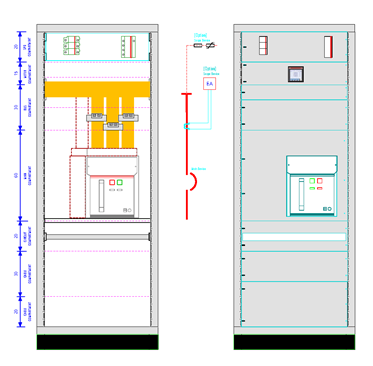

MAIN Sections | M16 | M25 | M40 | M63 |
|---|---|---|---|---|
Capacity | 250 to 1600A | 2000 & 2500A | 3200 & 4000A | 5000 & 6300A |
Busbar kA IC | 36 to 110kA | 36 to 120kA | 36 to 150kA | 36 to 150kA |
TTA [ Type Test ] | Available | Available | Available | Available |
Breaker | MCCB/ACB | ACB | ACB | ACB |
Standard IEC [415V AC] | IEC61000 - 60947 | IEC61000 | IEC61000 | IEC61000 |
Standard IEC [208V AC][480V AC] | UL1066 - UL489 | UL1066 | UL1066 | UL1066 |
Mounting Type | Fixed & Drawout | Fixed & Drawout | Fixed & Drawout | Fixed & Drawout |
Breaking [ kA IC ] | 36 to 150 | 42 - 150 | 85 - 200 | 100 - 200 |
Form | 1,2,3,4 [A & B] | 1,2,3,4 [A & B] | 1,2,3,4 [A & B] | 1,2,3,4 [A & B] |
Arc Test | Available | Available | Available | Available |
Siesmec Test | Zone 4 | Zone 4 | Zone 4 | Zone 4 |
Feeder Sections | F16 | F25 | F40 | F63 |
|---|---|---|---|---|
Capacity | 250 to 1600A | 2000 & 2500A | 3200 & 4000A | 5000 & 6300A |
Busbar kA IC | 36 to 110kA | 36 to 120kA | 36 to 150kA | 36 to 150kA |
TTA [ Type Test ] | Available | Available | Available | Available |
Breaker | MCCB/ACB | ACB | ACB | ACB |
Standard IEC [415V AC] | IEC61000 - 60947 | IEC61000 | IEC61000 | IEC61000 |
Standard IEC [208V AC][480V AC] | UL1066 - UL489 | UL1066 | UL1066 | UL1066 |
Mounting Type | Fixed & Drawout | Fixed & Drawout | Fixed & Drawout | Fixed & Drawout |
Breaking [ kA IC ] | 36 to 150 | 42 - 150 | 85 - 200 | 100 - 200 |
Form | 1,2,3,4 [A & B] | 1,2,3,4 [A & B] | 1,2,3,4 [A & B] | 1,2,3,4 [A & B] |
Arc Test | Available | Available | Available | Available |
Siesmec Test | Zone 4 | Zone 4 | Zone 4 | Zone 4 |
